# RC RaceCore English README. Swedish version: [`README.sv.md`](README.sv.md) RC RaceCore is an RC timing and race-control system with support for sponsor events with shared cars/transponders, AMMC WebSocket input, and local persistence through SQLite. ## Architecture - JavaScript module overview: `docs/javascript-architecture.md` - Security and performance audit: `docs/security-performance-audit.md` - Swedish operational guide: `README.sv.md` ## Windows Quick Start For a new Windows 11 computer, open **PowerShell** and follow these steps. 1. Check whether Git is installed: ```powershell git --version ``` 2. If `git` is not recognized, install it and reopen PowerShell: ```powershell winget install --id Git.Git --exact --source winget ``` 3. Download RC RaceCore and enter the project directory: ```powershell Set-Location $HOME git clone https://git.dio.nu/Public/Live_RC.git Live_RC Set-Location .\Live_RC ``` 4. Run the complete installer. It installs/checks Node.js, installs npm dependencies, verifies SQLite and starts the server in the background: ```powershell .\windows\install.bat ``` 5. Verify the server and open `http://localhost:8081`: ```powershell npm.cmd run status Invoke-RestMethod -Uri "http://127.0.0.1:8081/api/health" ``` If `winget` is missing, install [Git for Windows](https://git-scm.com/download/win). You can also download the repository as a ZIP without Git. See the complete [Installation](#installation) section for ZIP installation, LAN access, updates and troubleshooting. ## Screenshots Current layouts for race operation, live presentation, training and system configuration. Click an image to open the full-resolution version.

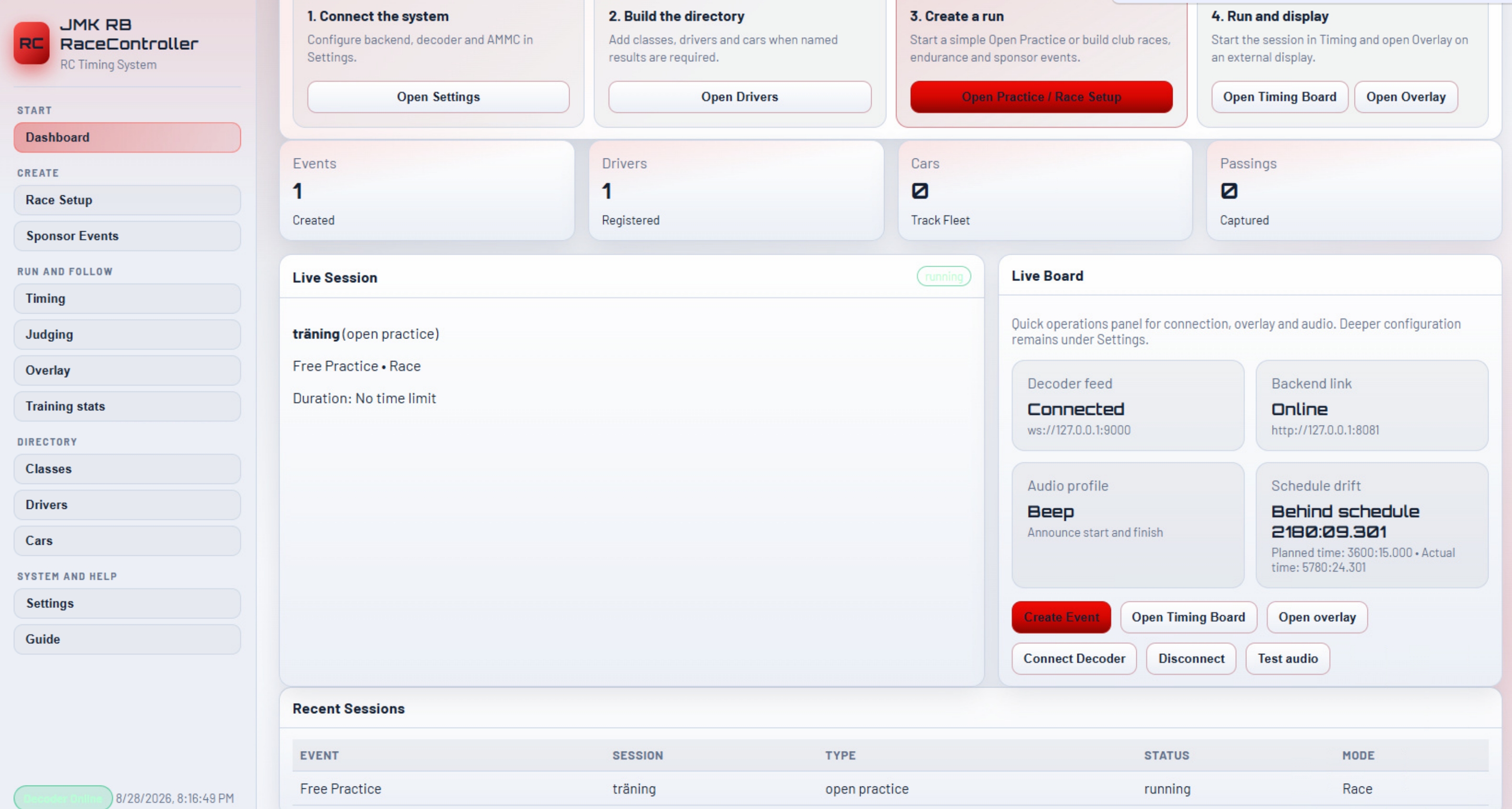

Dashboard with active session

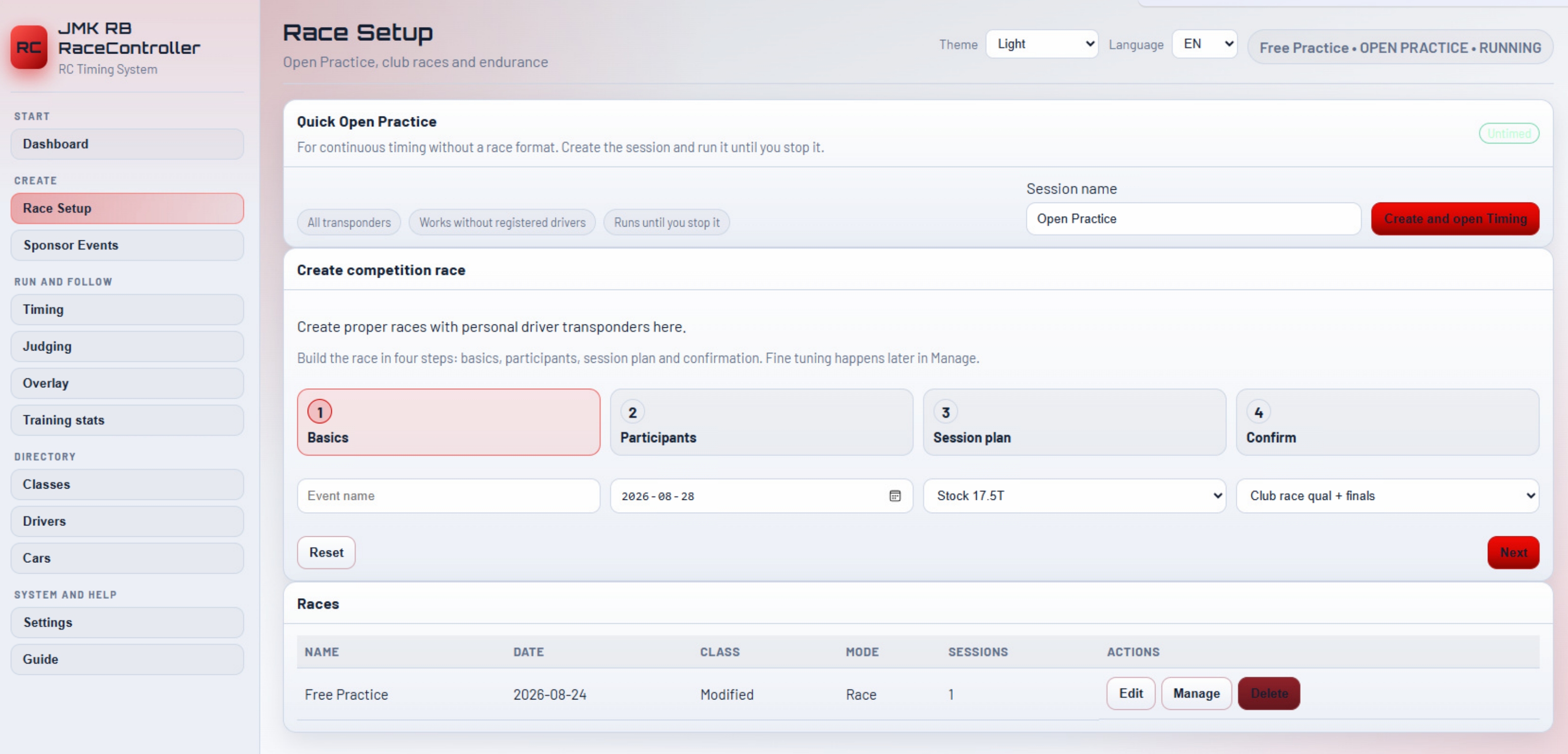

Dashboard with active session		 Race Setup wizard
Race Setup wizard

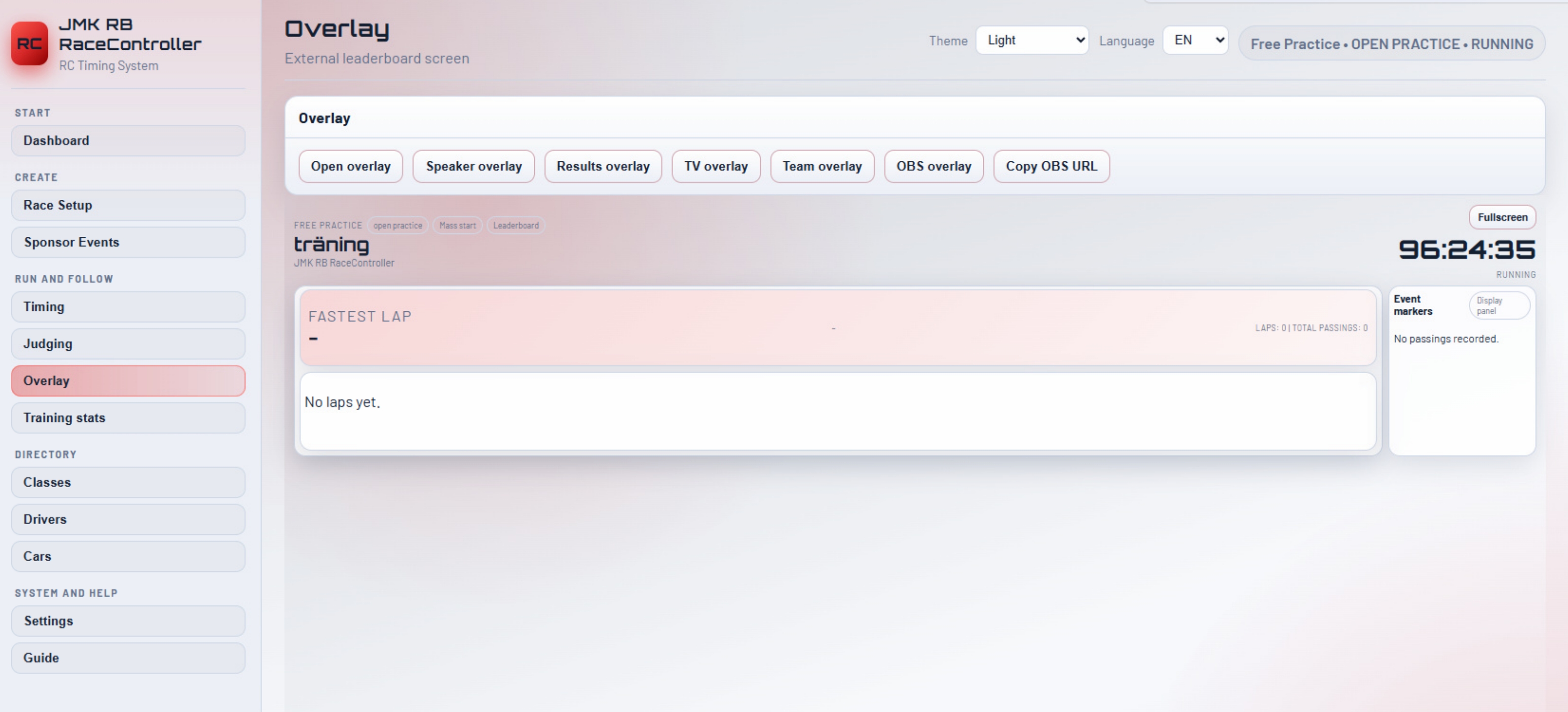

Full live overlay
Full live overlay		 Leaderboard overlay
Leaderboard overlay

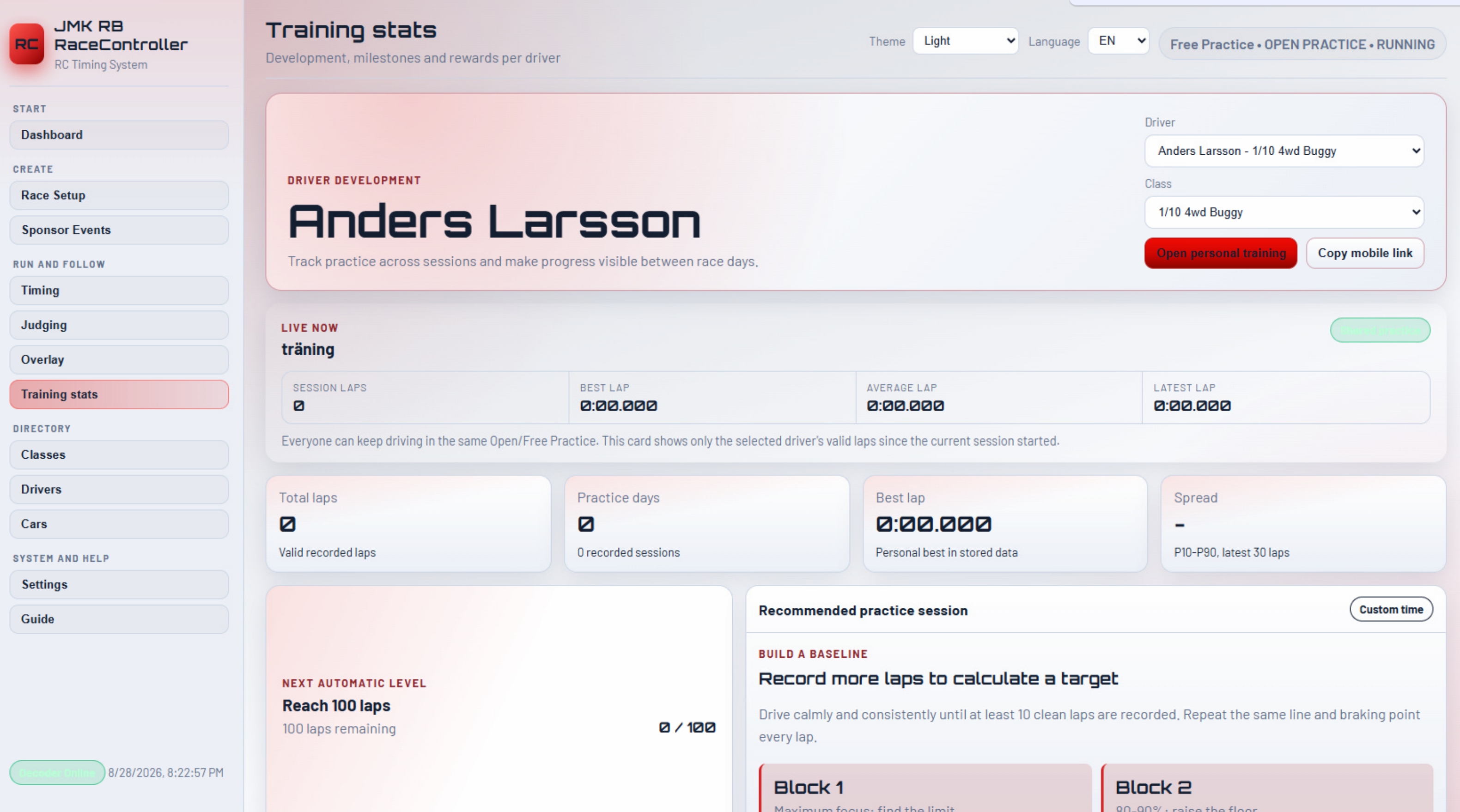

Practice statistics overview

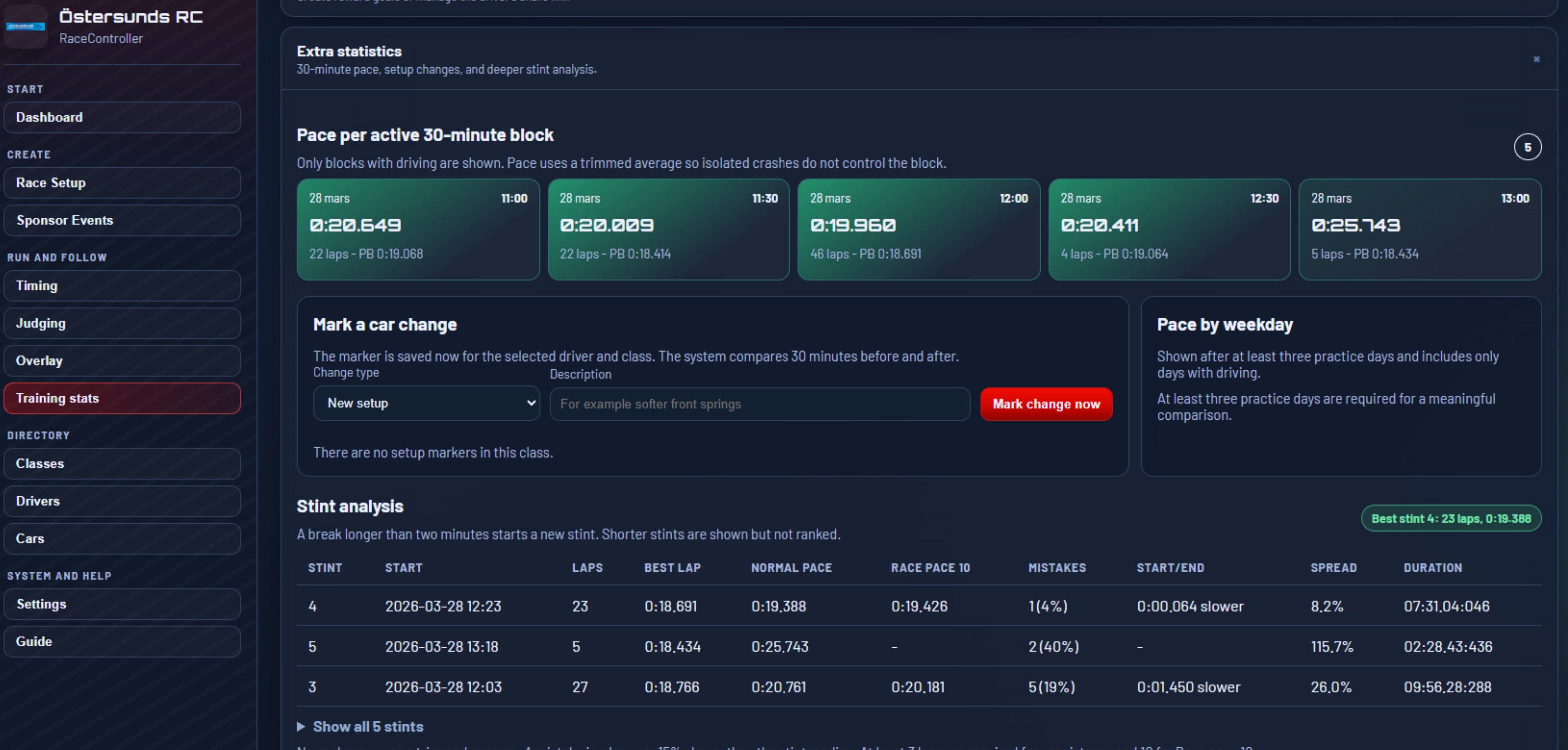

Practice statistics overview		 Detailed practice statistics with pace heatmap and stint analysis
Detailed practice statistics

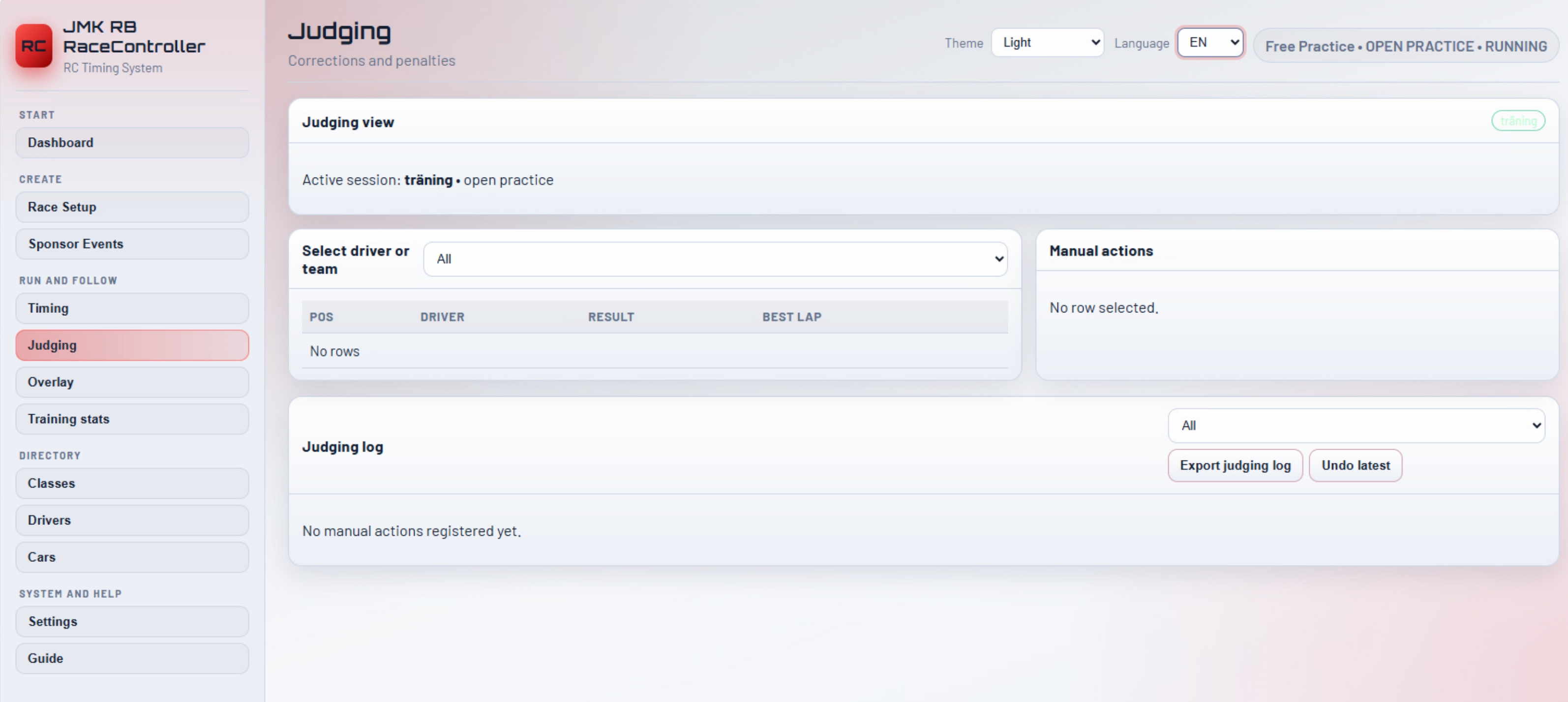

Judging and race corrections
Judging and race corrections		 Race sounds and announcements
Race sounds and announcements
Decoder configuration
Decoder configuration
## Public Overlay And OBS The app now supports a dedicated public overlay route so you do not need to expose the full admin UI externally. - Public overlay route: `/public-overlay/` - OBS mode: `/public-overlay/obs` - OBS overlay can be configured from the `Overlay` menu: - rows - layout: `leaderboard`, `grid`, `lowerthird` - theme: `panel`, `transparent`, `chroma` - visible columns and blocks - Use `Copy OBS URL` to generate a ready-to-paste browser-source link for OBS. If you want simple protection for public overlays, set this environment variable on the server: ```bash PUBLIC_OVERLAY_TOKEN=your-secret-token ``` This token gates the overlay route only. Do not expose port `8081` directly to the internet because administration APIs are not authenticated. Use a trusted race LAN, VPN, or authenticated reverse proxy. If the UI is intentionally served from another origin, list it in `RC_ALLOWED_ORIGINS` (comma-separated). See [`docs/security-performance-audit.md`](docs/security-performance-audit.md). Then the public overlay URL must include: ```text /public-overlay/obs?token=your-secret-token ``` Recommended deployment: - publish only `/public-overlay/*` through your reverse proxy - keep the main app/admin UI internal ## Features - Event modes: - `Race (driver transponders)` - `Track Event (shared cars)` - UI separation: - `Event` = sponsor events with shared cars/transponders - `Race Setup` = untimed Open Practice or competition races with personal driver transponders - Grouped navigation follows the operating flow: `Start`, `Create`, `Run and follow`, `Directory`, and `System and help`. - `Dashboard -> Getting started` links directly to system setup, driver registration, race/practice creation, Timing, and Overlay. - Storage/import tools: - full race-data export/import for backup or moving to another machine - directory export/import for only classes, drivers and cars - CSV export and safe merging CSV import for drivers and cars through Excel or LibreOffice - single race-package export/import from `Race Setup -> Manage -> Race Actions` - Race Setup includes: - `Quick Open Practice`: enter only a name, create an untimed all-transponder session, and continue directly to Timing - no class, registered drivers, preset, qualifying, finals, or duration is required for Quick Open Practice - grouped `Participants` and `Teams` sections in `Manage` - a four-step `Create Race Wizard` for new races - `Manage` split into `Setup`, `Format`, `Generation`, and `Live / results` - Basic mode now reacts to the selected preset, including a cleaner endurance view - `Basic / Advanced` mode for `Race Format` - a right-side race summary card - a preset-aware summary card that changes between endurance and normal race focus - status badges for `Setup`, `Format`, `Generation`, and `Live / results` - summary warnings when participants, sessions, teams, or lap-window settings are missing - clickable summary warnings that jump to the relevant Manage section - clickable step cards that act as quick navigation inside `Manage` - compact step cards with live counters such as drivers, teams, sessions, and active/results state - separate `Race actions` for generation, reseeding and bump-up - reorganized in-app `Guide` with overview cards and two-column sections - explicit race participant selection - practice standings - qualifying standings with `points` or `best result` - built-in step-by-step guide - inline descriptions for all `Race Format` fields - `Follow-up time` after scheduled race time before a heat fully closes - `Min lap time` and `Max lap time` filtering for shortcuts/false hits and better stint/stat logic - seeding modes for practice/qualifying: best N laps total, average, or consecutive - selectable qualifying points tables and tie-break rules - `Race Format` presets for short technical tracks, club races, IFMAR-style layouts, and endurance - schedule drift on `Dashboard` between planned and actual runtime - session type `Free Practice` for rolling lap-time display without seeding - automatic qualifying heat generation from practice standings or class list - re-seeding of upcoming qualifying heats from current standings - automatic `A/B/C...` finals generation from rankings - persistent manual grid per session with drag-and-drop grid editor - auto-reseed skips heats with locked manual grid - explicit `Lock/Unlock grid` per session - multi-leg final standings with counted final legs - optional bump-up between finals - reserved bump-up slots in higher finals - visual finals matrix with reserved bump slots - drag-and-drop grid editor for position starts - print/export of heat sheets per qualifying/final - overlay modes for external display screens - multiple overlay modes: leaderboard, speaker, results, TV, team - speaker overlay with event markers and separate speaker cues - live speaker panel in `Timing` - speaker cues and club branding for the sidebar, overlays, public training profiles, and PDFs from `Settings` - club logo upload for the sidebar, overlays, public training profiles, and PDFs from `Settings` - per-event/per-race branding in `Manage` - extra speaker cues for `session start`, `new best lap`, and `top 3 change` - selectable PDF themes: `classic`, `minimal`, `motorsport` - branded print and PDF exports - server-generated PDF exports with embedded logo - generated qualifying/finals inherit duration and start mode from race format - finish sound uses a siren instead of browser TTS - Sessions: - `practice` - `qualification` - `heat` - `final` - `free_practice` - `open_practice` - `team_race` - Sponsor event tools: - automatic round creation (`qualification`, `heat`, `final`) - auto-assign driver -> car per session - Live timing from AMMC WebSocket (`msg: "PASSING"`) - Managed AMMC from the web UI: - backend can start/stop local `ammc-amb` on Windows, Linux, and macOS - bundled binaries from `AMMC/windows64`, `AMMC/linux_x86-64`, `AMMC/apple_m` - Editing in UI: - classes, event names/dates, drivers, and cars can be edited directly - drivers and cars support optional `brand` fields for team, sponsor, manufacturer, or model data - `Drivers` and `Cars` can be searched by name, transponder, or brand directly in the UI - race start lists and heat sheets include driver brand in print, CSV, and PDF exports - Live race control: - countdown during timed sessions - auto-finish at end of session time with `Race is finished` - leaderboard sorting by laps first, then nearest to target time when applicable - configurable browser audio for start, finish, and passings (`beep` or driver name) - selectable operating-system speech voice, speech rate/pitch, and per-driver phonetic spoken name - session start types: `Mass start`, `Position start`, `Staggered` - `Timing` shows grid/order for the active `Position start` session - leaderboard shows `gap to leader`, `gap ahead`, and `own delta` - `Recent Passings` shows invalid laps such as `Short lap` and `Over max lap` - manual corrections in `Timing -> Details`: `+1/-1 lap`, `+1/+5/-1 sec`, reset - practice/qualifying seeding on best `2` or `3` laps - Persistence: - frontend state in browser `localStorage` - same state and passings persisted to local SQLite through the Node backend - Built-in `Guide` page in the app covering: - sponsor events (for example 10 drivers / 4 cars) - standard race setup - invalid laps, follow-up, and manual corrections - AMMC + npm setup on Windows and Linux - UI language selection: - `SV` - `EN` ## Training And Rewards The `Training` menu provides a non-race progression view for registered drivers: The default view is a club overview with totals and one row per driver and class. Select a driver from the list to open the intentionally simple personal view with four key statistics, the next lap target, today's practice plan and active rewards. Goal administration, mobile sharing and detailed history remain available in collapsed sections when needed. When Open Practice, Free Practice, or Practice is running, the selected driver gets a compact live card with current valid laps, best lap, average, and latest lap. The session remains shared by everyone; only the mobile personal timer and profile link are unique per driver and class. The primary action at the top creates or opens that link. One person can have separate driver entries for classes such as 2WD and 4WD and link them to the same `Practice profile` under `Drivers`. The person then has one profile and one mobile link, while every performance statistic is selected and calculated separately per class. Multiple transponders within the same class are combined in that class's statistics. The personal profile can also store `Club` and `Country`. These values are inherited when another class entry is linked to the same practice profile and are included in full JSON and driver CSV exports. They are not disclosed by the public profile link. - durable lifetime valid-lap ledger synchronized from stored session results - practice days, recorded sessions, personal best, overall/recent averages, controlled-lap streak, and recent consistency spread - automatic stint boundaries after a passing gap longer than 2 minutes - best 3 consecutive laps plus best 5-minute result and its average pace - the best 5-minute result counts the final lap when it started before `5:00` (`300 s`), even when the result finishes after the cutoff - daily history for the latest practice days and recent personal-best improvement - personal development trend comparing the latest 30 valid laps with the preceding 30, always isolated per class - automatic achievements for first practice, lap totals, practice days, controlled streaks, and completed five-minute stints - three optional daily challenges for valid laps, controlled consecutive laps, and a completed five-minute stint - a positive personal summary that recognizes today's volume, personal best, pace, consistency, and endurance without ranking drivers - a recent club progress feed ordered by activity rather than driver position or lap-count ranking - a configurable shared club target that counts every new valid practice lap from all registered drivers from the moment the target is created - one collapsed More statistics section with active 30-minute pace blocks based on a trimmed average - class-specific setup markers for tires, suspension, car changes, or custom notes, including an automatic 30-minute before/after comparison - detailed stint analysis with normal pace, best 10-lap race pace, mistakes, consistency, and start/end development - automatic progression levels at useful lap totals without manual setup - a configurable practice timer split into maximum-focus and controlled 80-90% blocks - custom lap milestones with quick targets at `500`, `1000`, and `1500` laps - optional reward text and a delivered/redeemed state - responsive layout for opening the same server from a phone on the local network Direct mobile/bookmark link: `http://:8081/?view=training`. Selecting a profile and class adds both to the URL so the exact view can be bookmarked. Training statistics currently include only valid laps linked to a registered driver. Anonymous Open Practice transponders are intentionally excluded until they are assigned to a driver. Judging corrections update ledger laps while the source session still exists. Once a session is deleted, its synchronized training laps remain in the ledger so lifetime progression is not lost. Full data export includes the ledger, reward goals, and setup markers. ### Read-only mobile profile Each registered driver can have an optional personal mobile link: 1. Open `Training` and select the driver. 2. Open `Goals and mobile profile`, then click `Enable mobile profile`. 3. Copy or open the generated link. 4. Use `Create new link` to revoke the previous URL, or `Disable profile` to turn sharing off. The URL uses a 192-bit random bearer token rather than a driver ID. The same link provides a class selector with fully separate lap times and practice results for each linked class. The public API does not return transponder IDs, other driver names, club ranking, race setup or admin state. The mobile page also includes a local practice timer where the driver chooses minutes for `Maximum focus` and `Controlled`. The default is `10 + 10`, while a five-minute heat can for example use `5 + 0`. While a shared Free Practice session keeps running, the card shows that driver's lap count, best lap and average since the personal timer started. Timer state and duration choices stay in that phone's browser, separately per driver and class, and do not modify race data. Durations are locked while a session runs and can be changed after finishing or resetting it. For internet publishing, proxy only these paths: ```text /public-training/* /src/public_training.js /src/public_training.css ``` Do not expose `/api/state` or the full admin application. Static serving is restricted to `/src` and `/docs`; `data/`, server scripts and bundled binaries are not public static files. Regression tests use Node's built-in test runner and require no extra test-framework dependency. The suite covers training profiles, race generation and timing, judging corrections, frontend/backend state synchronization, and an isolated SQLite API round-trip using a temporary data directory: ```bash npm test ``` The integration test starts its own backend on a temporary localhost port and never reads or writes the normal `data/rc_timing.sqlite` database. ## Create Race Wizard - `Race Setup` now starts with a four-step wizard for new races: - `Basics` - `Participants` - `Session plan` - `Confirm` - The wizard is intended to create the first race structure quickly: - choose class and preset - scope valid race drivers - create practice, qualifying, and/or team-race sessions automatically - Finals are still generated later from `Race Actions` after practice or qualifying is complete. ## Manage workflow - After the race is created, `Manage` is split into four clear stages: - `Setup` - `Format` - `Generation` - `Live / results` - `Setup` handles race participants and teams. The top step cards also act as quick navigation between the four blocks. - `Format` handles practice/qualifying, finals, validation, presets, and advanced settings. In Basic mode, endurance hides most qualifying/finals fields until Advanced is opened. - `Generation` is kept separate so actions like qualifying generation, reseeding, finals generation, and bump-up do not clutter the format form. - `Live / results` is where grid, standings, print, PDF, and finals matrix are used once the structure is ready. ## Export / Import - `Settings -> Storage` now supports: - full JSON export/import for the complete competition database - directory JSON export/import for only classes, drivers, and cars - CSV export and merging CSV import for drivers and cars; comma, semicolon, and tab delimiters are supported - separate clearing of drivers, cars, classes, races/sessions, or training statistics - `Clear all competition data` retains decoder, theme, branding, and server settings - `Race Setup -> Manage -> Race Actions` now supports single race packages: - export one race with its sessions, results, and referenced classes/drivers/cars - import that package into another installation as a new race entry - JSON export files now include export metadata and a schema version field so future imports can be handled more safely. - CSV imports from the application's own exports preserve IDs. External lists without IDs first match by transponder and then by name + class. Empty fields do not overwrite existing information, and new class names are created automatically. - Driver imports only require the `name` column. The recommended minimum is `name;transponder;class`. Optional columns such as `brand`, `spoken_name`, `club`, `country`, and `profile_id` may be omitted; unknown columns are ignored and rows without a name are skipped. ```csv name;transponder;class;brand;club;country Anna Andersson;123456;2WD;;JMK;SE Erik Eriksson;654321;4WD;Associated;; ``` - An empty CSV template can be downloaded directly from the driver import area under `Settings -> Storage`. - Create a JSON backup before clearing data. Every clear button requires a separate confirmation and cannot be undone. - Web clearing removes canonical application data but retains the separate raw SQLite `passings` table as an audit log. A physical factory reset of the database must be performed locally on the stopped server, never through an unauthenticated LAN route. ## Race features ### Follow-up time - Configure it in `Race Setup -> Manage -> Race Format` - It can also be set per session when creating or editing a session - When scheduled time ends, the session enters follow-up first - When follow-up ends, the session closes automatically - Generated qualifying/finals inherit follow-up from race format ### Min / Max lap time - Configure it in `Race Setup -> Manage -> Race Format` - `Min lap time`: - laps faster than the threshold are ignored as shortcuts or false hits - `Max lap time`: - laps slower than the threshold are not counted as valid laps - also used to split stints and improve statistics Example: - track around `16 sec/lap` - `Min lap time = 11 sec` - `Max lap time = 60 sec` ### Invalid passings - `Timing -> Recent Passings` shows both valid and invalid passings - displayed statuses include: - `Short lap` - `Over max lap` - invalid passings are visually highlighted ### Manual corrections - open `Timing` - click `Details` on a driver or team - available actions: - `+1 lap` - `-1 lap` - `+1 sec` - `+5 sec` - `-1 sec` - `Reset correction` - leaderboard and results update immediately ### Best laps / average / consecutive - Configure per session with `Seed Method` when `Best laps for seeding` is greater than `0` - available modes: - `Best N laps, total` - `Best N laps, average` - `Best N consecutive laps` - leaderboard and standings use the correct format: - total: `3/00:48.321` - average: `3 avg 16.107` - consecutive: `3 con 00:49.005` ### Points tables and tie-break - Configure in `Race Setup -> Manage -> Race Format` - qualifying points tables: - `Placement values (1,2,3...)` - `Descending by field size` - `10-9-8-7-6-5-4-3-2-1` - qualifying tie-break options: - `Compare counted rounds` - `Best single lap` - `Best round / heat result` - qualifying standings also show an inline tie-break note in the table ### Race format presets - `Race Setup -> Manage -> Race Format` - choose a preset and click `Apply preset` - built-in presets: - `Short technical track 16s` - `Club race qual + finals` - `IFMAR-style qual/finals` - `Endurance / team race` - after applying, all fields can still be adjusted manually and saved as usual - `Save club preset` stores your own local presets in app state - `Delete club preset` removes a local preset - `Settings -> Club presets` can export/import the preset library as JSON between installations ### Schedule drift on Dashboard - `Dashboard` shows whether the day is ahead of or behind schedule - planned time includes: - session duration - follow-up time - actual time includes: - real time from start to stop - or live runtime if the session is still running ### Invalid-lap marker in leaderboard - if the latest passing for a driver or team is invalid, the row is marked in both leaderboard and overlay - this makes it easier to see problems without staying in `Recent Passings` ### Manual invalidate / restore last lap - `Timing -> Details` - `Invalidate last lap` marks the latest counted lap as manually invalid - leaderboard, overlay, and lap history update immediately - `Restore latest manually invalidated lap` puts the latest manually invalidated lap back if needed ### Judging view - separate `Judging` menu - shows active session, leaderboard, lap history, and judging log in one view - same corrections as `Timing -> Details` - row filters: - `All` - `Invalid` - `Corrected` - `Team race` - judging log can be exported per session as JSON - supports `Undo latest` and per-log-row undo for multiple recent manual actions ## Future improvements - Optional neural text-to-speech for more natural start, finish, and driver-name announcements. - Preferred design: generate speech through the backend, cache short audio files under `data/tts/`, and play cached audio without network delay during a race. - Keep provider credentials on the backend only. Never expose API keys to the browser or public overlay. - Retain the current system voice and passing beep as offline fallbacks. - Support uploaded or prerecorded WAV/MP3 clips for fixed start and finish announcements. ## Installation RC RaceCore runs on 64-bit Windows 11 and Linux. Use Node.js 22 or 24 LTS and npm 10 or newer. The repository includes `package-lock.json`, so use `npm ci` rather than `npm install` for repeatable installations. ### Windows 11 - new computer #### 1. Install Git Open PowerShell and check whether Git is available: ```powershell git --version ``` If Windows reports that `git` is not recognized, install Git with Windows Package Manager: ```powershell winget install --id Git.Git --exact --source winget ``` Close and reopen PowerShell after installation, then run `git --version` again. If `winget` is unavailable, install Git for Windows from [git-scm.com](https://git-scm.com/download/win). #### 2. Download RC RaceCore Clone the public repository from a normal PowerShell prompt: ```powershell Set-Location $HOME git clone https://git.dio.nu/Public/Live_RC.git Live_RC Set-Location .\Live_RC ``` Enter the raw URL exactly as shown. Do not paste Markdown syntax such as `[https://...](https://...)` into PowerShell. If you do not want to install Git, open [the public repository](https://git.dio.nu/Public/Live_RC), download its ZIP archive, and extract the complete archive. Make sure `package.json`, `server.js`, `src\`, and `windows\` are all in the same project directory. #### 3. Run the Windows installer From the project directory: ```powershell .\windows\install.bat ``` You can also double-click `windows\install.bat` in Explorer. The installer: - installs Node.js LTS through `winget` when Node is missing or unsupported - installs/checks the Microsoft Visual C++ runtime used by AMMC - runs `npm.cmd ci` using the locked dependency versions - verifies Express, SQLite, and bundled AMMC files - creates `data\` and `logs\` - runs `npm.cmd restart` and leaves RC RaceCore running in the background If the installer cannot install Node automatically, install Node.js 22 or 24 LTS from [nodejs.org](https://nodejs.org/en/download), reopen PowerShell, and run the installer again. #### 4. Verify and open the application ```powershell npm.cmd run status Invoke-RestMethod -Uri "http://127.0.0.1:8081/api/health" ``` Open: ```text http://localhost:8081 ``` To open RC RaceCore from another computer on the race LAN, run `ipconfig` on the server and use: ```text http://:8081 ``` Use `npm.cmd` in PowerShell. This bypasses the common `npm.ps1 cannot be loaded because running scripts is disabled` error. Plain `npm` normally works in Command Prompt. #### Windows manual installation If you do not use `install.bat`: ```powershell node --version npm.cmd --version npm.cmd ci npm.cmd run verify npm.cmd start ``` Do not use `npm.cmd ci --ignore-scripts`. The native SQLite dependency needs its install script. ### Linux - Ubuntu/Debian #### 1. Install Git and basic tools ```bash sudo apt update sudo apt install -y git curl build-essential git --version ``` #### 2. Install Node.js 22 LTS when needed Check the installed version: ```bash node --version npm --version ``` If Node is missing or older than version 22, install Node.js 22 from NodeSource: ```bash curl -fsSL https://deb.nodesource.com/setup_22.x | sudo -E bash - sudo apt install -y nodejs node --version npm --version ``` Node.js 22 or 24 LTS is recommended. Node.js 18 and 20 are not supported by the current native SQLite dependency. #### 3. Clone, install, and start ```bash mkdir -p ~/git cd ~/git git clone https://git.dio.nu/Public/Live_RC.git Live_RC cd Live_RC npm ci npm run verify chmod +x AMMC/linux_x86-64/ammc-amb npm start npm run status curl http://127.0.0.1:8081/api/health ``` `npm start` launches RC RaceCore in the background. Open `http://localhost:8081`, or find the Linux server address with `hostname -I` and open `http://:8081` from another computer. If the bundled Linux AMMC binary reports a missing `GLIBC` version, use an AMMC build compatible with the host distribution. Do not manually replace the operating system's glibc. ### Runtime commands Windows PowerShell: ```powershell npm.cmd start npm.cmd run status npm.cmd restart npm.cmd stop npm.cmd run start:fg ``` Linux: ```bash npm start npm run status npm restart npm stop npm run start:fg ``` - `start` runs the backend in the background - `status` reports whether the PID in `data/server.pid` is running - `restart` reloads backend changes - `stop` stops the managed process - `start:fg` runs in the current terminal and displays startup errors directly - stdout is written to `logs/server.out.log` - stderr is written to `logs/server.err.log` - SQLite data is stored in `data/rc_timing.sqlite` ### Windows helper scripts - `windows\install.bat`: install dependencies, verify, and restart - `windows\start_backend.bat`: start the backend in the background - `windows\restart_backend.bat`: restart after copied or pulled updates - `windows\start_ammc.bat`: start bundled AMMC manually - `windows\start_all.bat`: start AMMC and backend, then open the browser - `windows\stop_all.bat`: stop the backend and `ammc-amb.exe` ### Update an existing installation without losing data The SQLite database and local configuration are in `data/`. Do not delete or replace this directory during an update. Windows: ```powershell npm.cmd stop git pull --ff-only npm.cmd ci npm.cmd run verify npm.cmd restart npm.cmd run status ``` Linux: ```bash npm stop git pull --ff-only npm ci npm run verify npm restart npm run status ``` If the installation came from a ZIP archive instead of Git, back up `data/`, extract the new application files, restore/retain the existing `data/` directory, run `npm ci`, and restart. Never copy `node_modules/` between Windows and Linux. ## Connect to AMMC There are two supported modes. For the complete network diagram, ready-to-use 1/2/3/4-decoder examples, firewall setup, and troubleshooting, see [`docs/decoder-setup.md`](docs/decoder-setup.md). Swedish: [`docs/decoder-setup.sv.md`](docs/decoder-setup.sv.md). ### A. Managed AMMC from the web UI Important: - AMMC runs on the same host where the backend was started with `npm.cmd start` - if you only browse from another laptop, no process starts there - the `AMMC executable` field in `Settings` is a path on the backend host, not the client browser machine #### Decoder topology | Role | Physical placement | Example decoder IP | AMMC WS port | Effect | |---|---|---:|---:|---| | Main start/finish | Start/finish loop | `192.168.1.10` | `9000` | Counts laps and controls lap time | | Split | Intermediate loop | `192.168.1.11` | `9001` | Records split from the latest main crossing; never counts a lap | | Pit entry | Entry to pit lane | `192.168.1.12` | `9002` | Opens a pit stop | | Pit exit | Exit from pit lane | `192.168.1.13` | `9003` | Closes and times a pit stop | The decoder IP and WebSocket address are different things. The decoder IP points from AMMC to physical hardware. The browser connects to AMMC on the backend host, for example `ws://192.168.1.100:9001`. Each decoder must have a unique network address and each AMMC process must have a unique WebSocket port. Use only the channels physically installed at the track. One decoder on `9000` remains the default and needs no optional settings. Split timing requires one additional decoder. Pit timing requires two additional decoders because entry and exit are separate events. A complete setup therefore uses four decoders. Split and pit data is available in several places: - `Timing` shows the active heat summary and complete pit-stop log live. - `Race Setup -> Manage -> Live / results` shows the summary and pit log for every heat, including long 45-minute endurance heats. - regular and team result exports include split/pit summaries and the complete entry/exit log in PDF. - `Training -> More statistics` aggregates split and pit performance for the selected personal driver profile and class; different classes are never mixed. - the personal mobile profile shows only sanitized counts and aggregate times for the selected class. It never exposes transponders, other drivers, or the raw pit-stop log. If a team changes driver or car between pit entry and pit exit, the completed stop remains attributed to the driver, car, and transponder detected at pit entry. The exit transponder is retained separately for diagnostics. 1. Place AMMC binaries in the `AMMC/` project folder. 2. Open `Settings`. 3. Enable `Managed AMMC`. 4. Set the Main `Decoder IP / host`, verify port `9000`, and optionally enable/configure Split and Pit channels from the table above. 5. Click `Start AMMC`. 6. Click `Use server WS URL` so the client uses for example `ws://:9000`. Default binaries: - Linux host: `AMMC/linux_x86-64/ammc-amb` - Windows host: `AMMC/windows64/ammc-amb.exe` - macOS host: `AMMC/apple_m/ammc-amb` ### B. Manual start Example: ```powershell ammc-amb.exe -w 9000 192.168.1.10 ``` Complete four-decoder example, using four separate terminals/processes: ```powershell ammc-amb.exe -w 9000 192.168.1.10 ammc-amb.exe -w 9001 192.168.1.11 ammc-amb.exe -w 9002 192.168.1.12 ammc-amb.exe -w 9003 192.168.1.13 ``` In the app: 1. Open `Settings` 2. Set `WebSocket URL`, for example `ws://127.0.0.1:9000` 3. Set `Backend URL` to `http://127.0.0.1:8081` 4. Click `Test Backend` 5. Go to `Timing` and click `Connect Decoder` If Linux firewall/UFW is enabled: ```bash sudo ufw allow 8081/tcp sudo ufw allow 9000:9003/tcp ``` ## Auto reload during development - The server watches `index.html`, `src/app.js`, and `src/styles.css` - When files in `Live_RC` change, the client reloads automatically - If backend code changes on Windows, run `npm.cmd restart` ## Verify SQLite persistence Latest passings via API: - `http://localhost:8081/api/passings` Saved app state via API: - `http://localhost:8081/api/state` ## Important rule for sponsor events - In the same running session, every active car must have a unique transponder ID - The same transponder ID can be reused in the next session (`Heat 1 -> Heat 2 -> Heat 3 -> Final 1 ...`) ## AMMC JSON reference Official quick start: - https://www.ammconverter.eu/docs/intro/quick-start/ Example message: ```json { "msg": "PASSING", "passing_number": 1, "transponder": 232323, "rtc_time": "2022-10-11T22:57:36.099+02:00", "strength": 0.0, "resend": false, "tran_code": "ID:232323", "loop_id": "55" } ``` ## Race audio and start lights The repository includes `rc-race-sound-pack/`. `sound_manifest.json` is the source of truth for event-to-WAV and Swedish/English announcement mappings. The server exposes it at `/race-sounds/sound_manifest.json`; WAV files are served from `/race-sounds/sounds/effects/`. 1. Open `Settings -> Race sounds and announcements`. 2. Select `sv` or `en`, choose an installed Race voice, then set its speed, pitch, and master/effects/voice/passing volume. The offline race-controller defaults are speed `1.08` and pitch `0.90`; prerecorded or neural clips are still required for genuinely human announcer quality. 3. Enable or disable effect and voice independently for each event and use its Test button. Changes save automatically, and the section also has its own Save button. WAV effects are prerecorded; voice announcements use the operating system Web Speech voices. 4. Select a 0/10/30/60-second pre-start, start lights, and random delay limits. For timed race sessions the clock starts at the same callback that initiates the start tone. Open/Free Practice starts immediately. 5. Use the Race Control buttons in `Timing` for Track call, Track clear, Red flag, False start, and Marshal warning. Effects are asynchronous and never awaited by decoder processing. Critical speech interrupts lower-priority speech; short passing effects may overlap. Missing WAV files are ignored safely. A driver or car may select `pass_01.wav` through `pass_08.wav`; until those optional files exist under `rc-race-sound-pack/sounds/effects/`, playback falls back to `transponder_pass.wav`. Implemented automatic hooks include passings, personal/meeting best, fastest lap, historical class track record, leader and position changes, pit entry/exit, 60/30/10 seconds remaining, final lap/time expired, finish, winner, and podium. Penalty announcements reuse the existing judging correction action.
