SignalScope

SignalScope is a local multi-source security analytics agent. Its primary mode connects to Graylog through MCP, discovers the streams and fields already available in your environment, and uses stream profiles to normalize events, build baselines, correlate entities, and explain anomalies with a local LLM.

Its running only locally and if using LLM it's running also locally so no data is sent or exposed outside.

FortiGate is one supported example. The same workflow applies to DNS/AdGuard, Windows Event Logs, Sysmon, Nginx, Squid, VPN, Proxmox, Filebeat-collected logs, and future Graylog streams.

The Python module and legacy fgai command remain available for compatibility. New installations can use signalscope.

The prioritized implementation plan is tracked in ROADMAP.md.

Autoblocking is dry-run by default. The tool will not block RFC1918, loopback, multicast, link-local, reserved, or allowlisted addresses unless you change the code.

Screenshots

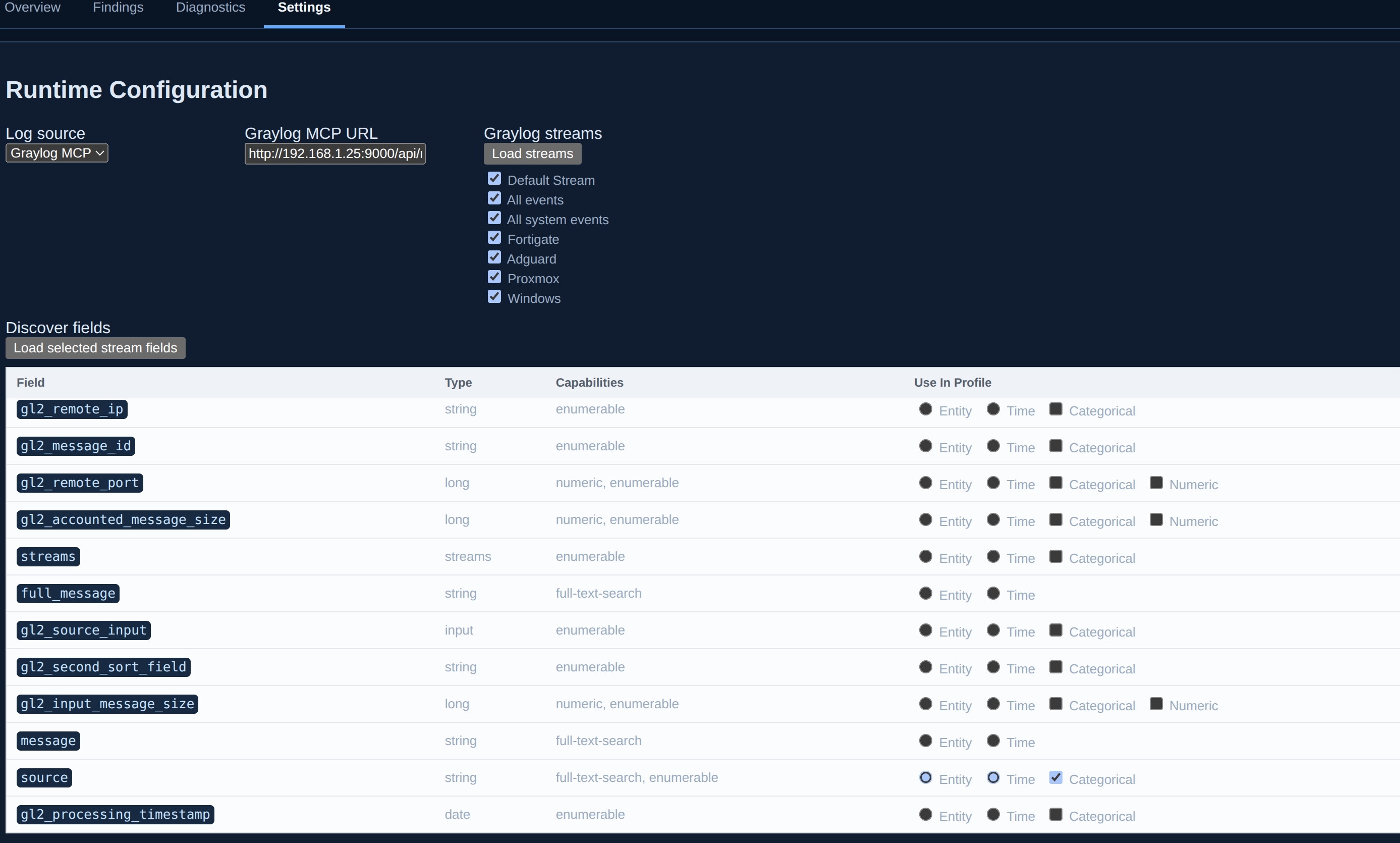

Settings

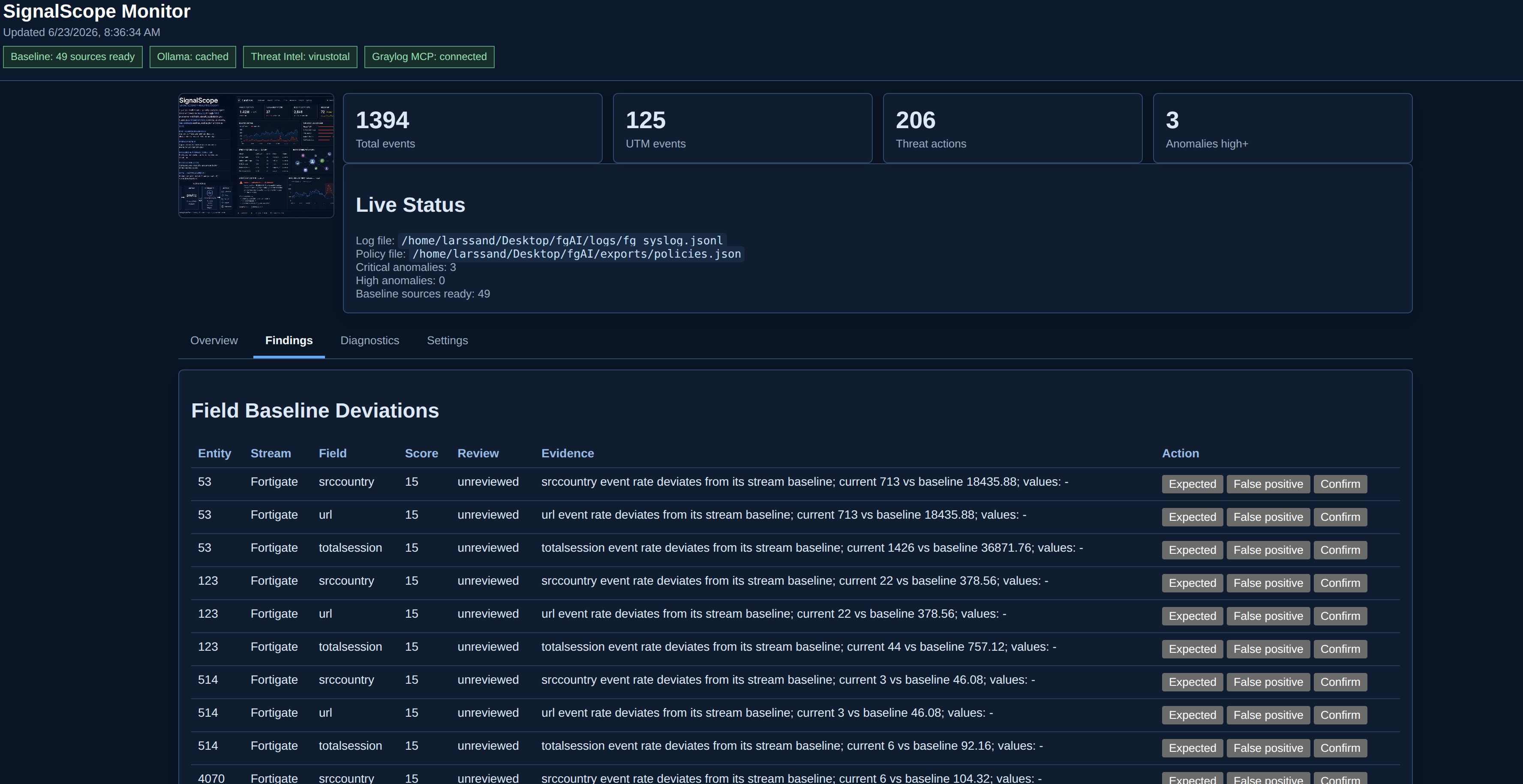

Findings

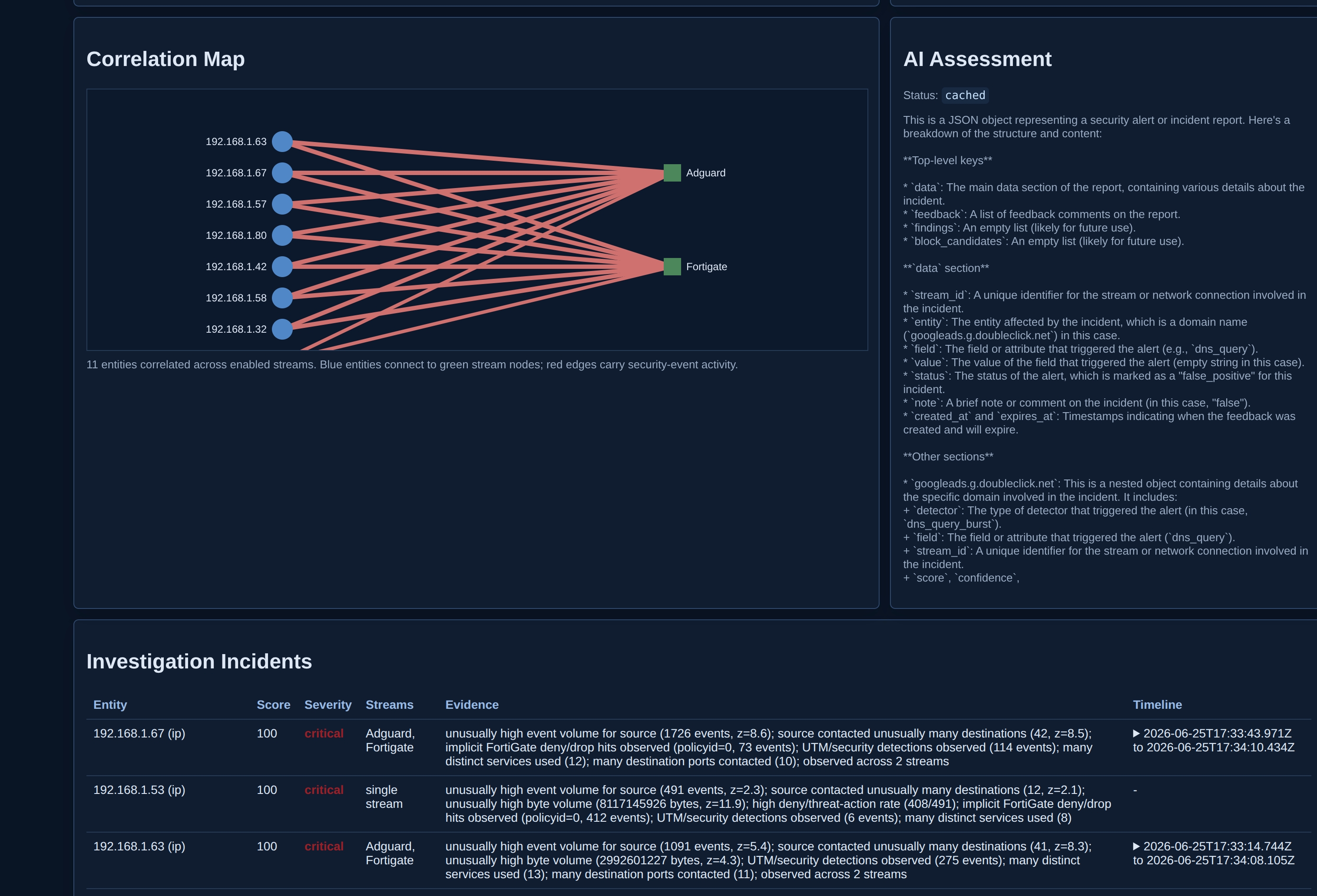

Correlation

Quick Start

python -m venv .venv
source .venv/bin/activate
pip install -e .

Or use the helper script, which creates/uses .venv automatically and runs pip install -e .:

./start.sh
./start.sh status
./start.sh analyze
./start.sh stop

./start.sh starts three local background processes:

• Optional UDP syslog listener writing logs/fg_syslog.jsonl
• Continuous monitor writing state/fgai-status.json
• Local dashboard at http://127.0.0.1:8088

Dashboard How To

The dashboard is the normal way to run SignalScope once the service is started. It is organized around the operational workflow:

1. Open Settings.
2. Select Graylog MCP.
3. Enter the Graylog MCP URL and token, then save.
4. Click Load streams.
5. Enable the streams you want SignalScope to monitor, then save again.
6. Apply missing recommended profiles, or click Edit profile on a stream to choose its entity, time, baseline, detector, and weight fields manually.
7. Let the baseline learn for the configured Baseline training days before treating every deviation as actionable.
8. Use Overview for incidents, trends, stream health, AI assessment, and the correlation map.
9. Use Findings for the triage queue, field baseline deviations, related activity across sources, threat intelligence, and policy findings.
10. Use Diagnostics to confirm stream coverage, MCP fetch health, profile readiness, data quality, and normalized top fields.
11. Mark findings as Expected, False positive, or Confirmed so repeated known behavior is labeled and lower priority in later refreshes.

The UI also includes a How To tab with the same operational checklist. Use it when adding new streams or when the dashboard has data but it is unclear what needs attention next.

Operating The Dashboard

Start in Overview, not in the long diagnostics tables. The intended daily flow is:

1. Read Operator Guidance for the next action SignalScope thinks is most useful.
2. Check Investigation Incidents for grouped entity-level problems.
3. Use the correlation graph to see whether the same entity appears across several streams.
4. Open Findings only after you have an entity or incident to inspect.
5. Expand evidence rows and use the Graylog query link to inspect the raw events.
6. Mark the finding as Expected, False positive, or Confirmed.

The top status badges are health indicators:

• Graylog MCP: connected means the last completed MCP query worked.
• Graylog MCP: refreshing means a poll is in progress and the UI is showing previous counters until the poll completes.
• Graylog MCP: error means the UI may be showing cached data. Check the MCP URL, token, DNS/TLS, and stream permissions.
• Baseline: N sources ready means historical source-IP baselines exist for N source entities. Profile readiness is checked separately per stream field.
• Ollama: cached or ok means local LLM output is available. It is supporting evidence, not the source of truth.

Use Diagnostics -> Stream Coverage to decide whether the monitor is healthy:

• ready: stream is enabled, profile exists, events are arriving, and profile fields have enough baseline history.
• learning: stream is enabled and profiled, but baseline age or bucket count is still too low.
• missing_profile: stream is enabled but no profile exists. Apply a recommended profile or edit one manually.
• no_events: stream is enabled but no raw sample was returned in the last poll. Check stream activity, query, range, or permissions.
• partial_fetch: Graylog returned only part of the raw sample. Use aggregate or auto mode with a smaller raw sample on high-EPS streams.
• sample capped: aggregate mode counted the full window, but raw events were intentionally capped to keep context queries manageable.

Ready Fields is shown as ready/tracked, for example 0/8. The stream profile tracks 8 fields, but none of those fields are mature yet. A field needs at least 12 five-minute buckets and the configured Baseline training days before it is ready. With the default seven-day training window, new profiles can show 0/X for days even while data is being learned.

Interpret findings by maturity:

• During learning, findings are mostly profile-tuning signals.
• When fields are ready, high-score deviations are more meaningful.
• new_relationship means a new field pair appeared, such as username -> srcip or host -> process.name.
• rare_value means a new value appeared for a profiled entity and field.
• event_rate_burst, auth_failure_burst, dns_query_burst, and deny_action_burst compare the current window to historical buckets.

The review buttons are part of the detection loop:

• Expected: known behavior that should stay visible but not keep creating noise for the same scope.
• False positive: weak or bad signal for this scoped pattern.
• Confirmed: real investigation item.
• Expiry should be used for temporary expected changes, such as maintenance or a migration window.

Primary Workflow: Graylog MCP

Graylog 7.1 MCP is the primary log-source integration. In the dashboard, open Settings, select Graylog MCP, provide the MCP URL and a read-only API token, then load and enable the streams to analyze. SignalScope uses MCP list_streams, list_fields, search_messages, and aggregate_messages to work with existing log sources rather than requiring every source to be forwarded locally.

The token field accepts a raw Graylog API token, the Base64 value after Basic , or a complete Basic <value> header. Tokens are stored only in the local runtime configuration and are never returned by the dashboard API.

Use Edit profile on a stream to load its fields. The field table shows Graylog datatype/capability metadata and lets you select one or more entity fields, a time field, and categorical/numeric fields for the stream profile. Profiles are stored under graylog_stream_profiles in state/fgai-config.json.

The Settings page also shows recommended stream profiles built from observed field coverage and cardinality. These recommendations use deterministic discovery first, then can optionally be refined by a local Ollama profile advisor model such as qwen3:8b or qwen3:14b. Enable Ollama profile advisor and set Profile advisor model in Settings. Advisor output must be valid JSON and is validated against fields actually seen in the stream before it can be applied. Unknown fields, raw message fields, internal fgai_* fields, and unknown detectors are rejected.

Windows-like streams are recognized from stream names such as Windows, Winlog, Security Event Log, Sysmon, and Powershell, or from Windows event fields. The MCP search asks for common Winlogbeat/ECS names such as winlog.event_id, event.code, user.name, host.name, source.ip, winlog.channel, and process.name before a profile exists. Their default recommendation favors normalized username, hostname, and srcip as entities, then uses the observed Windows fields such as event ID, action/outcome, channel/provider, logon_type, process/service fields, and event category/type as categorical baseline fields. The authentication-failure detector is enabled by default. You can still edit the applied profile per stream when your Windows parser uses different field names or when a stream contains a narrower log type.

Settings also lists locally installed Ollama models from http://127.0.0.1:11434/api/tags. Click a model name to fill both the dashboard analyst model and profile advisor model fields.

The settings page treats stream enablement and profile editing separately. The checkboxes decide which streams are monitored. Click Edit profile on one stream to load its fields and edit only that stream's profile; saving with no active profile editor leaves existing profiles unchanged.

When many Graylog streams are available, use Diagnostics -> Stream Coverage to see which streams are enabled, which have profiles, how many profile fields are baseline-ready, how many events were fetched, and whether a stream is ready, learning, missing_profile, no_events, or not_enabled.

Recommended stream profiles are an onboarding helper, not a fixed FortiGate parser. SignalScope inspects the fields observed from each Graylog stream and looks for common denominator fields such as entities, timestamps, actions, severities, categories, ports, DNS names, URLs, process fields, Windows event IDs, and numeric counters. Fields that appear across multiple enabled streams are preferred when they are useful for correlation or baselining. The local Ollama profile advisor can refine those recommendations, but the deterministic profile discovery remains the fallback when Ollama is disabled, missing, slow, or returns invalid JSON.

Cross-stream discovery is semantic, not just exact-name matching. Source IP fields such as srcip, source.ip, source_ip, and client_ip are grouped as the same shared entity field. The same approach is used for destination IPs, ports, timestamps, actions, severities, usernames, hosts, event IDs, DNS names, services, URLs, and context/message fields. Recommended profiles show both the selected per-stream fields and the shared alias groups so you can see why a field is useful for correlation even when different products use different schemas. If the Ollama advisor returns no usable profile for a stream, the row stays on the deterministic profile and is labeled as a heuristic fallback instead of pretending the whole recommendation failed.

Recommended profiles can be re-applied to existing profiles. Enable show existing profiles and click Update profile to append newly discovered entity, categorical, numeric, and detector fields. Existing profile names, field weights, and detector threshold settings are preserved, so this is the fast path after field-alias matching improves or after Graylog starts parsing additional fields.

Profile discovery is accumulated over monitor cycles. This matters in high-EPS environments where each poll only fetches a raw sample for context while aggregate queries count the full window. Fields seen in earlier samples are kept in the local history database and continue to participate in recommended profiles and shared-field matching even if the current raw sample does not contain them. This lets late-arriving or less frequent fields such as custom lcs_* application fields stay visible long enough to be reviewed and appended to an existing profile.

Shared-field discovery is also used as the base for cross-source correlation. SignalScope groups exact aliases and broader semantic families such as source IP, user, host, ID, status/result, action, type/category, domain, URL, and custom namespaces such as lcs_*. These shared groups are the foundation for a global correlation profile and future flow graphs that show how users, hosts, IPs, applications, IDs, statuses, and destinations relate across streams.

Enabled streams are normalized through the same event model. Stream profiles define the entity, timestamp, categorical, and numeric fields used for baselines. The dashboard and Ollama then correlate behavior across sources, for example a client IP appearing in FortiGate, AdGuard/DNS, Windows Security, Nginx, Squid, VPN, or Proxmox.

A stream profile can track multiple entities from the same event, such as username, srcip, and hostname. SignalScope stores profile baselines for each selected entity value, which makes cross-source investigation work even when one source is user-centric and another is IP- or host-centric.

Profiles can also track field relationships as behavior patterns. This is useful when the suspicious signal is not a single new value, but a new combination such as a known user logging in successfully from a source IP that has never been seen for that user before. Add relationship_fields to a stream profile, for example:

[
  {
    "stream_id": "windows-security",
    "entity_field": "username",
    "categorical_fields": ["action", "eventid"],
    "relationship_fields": [
      {"left": "username", "right": "srcip", "name": "user source IP"},
      {"left": "username", "right": "hostname", "name": "user host"}
    ]
  }
]

After the baseline has learned those relationships, a new username -> srcip or username -> hostname pair is reported as new_relationship with sample events. The dashboard profile editor exposes this as Behavior relationships (JSON).

SignalScope keeps a common alias map for fields such as source IP, destination IP, ports, action, severity, service/protocol, DNS query, URL, message, and event type. This lets Related Activity and correlations work with firewall/proxy/DNS streams that use names like src_addr, destination.ip, dest_port, fw_action, priority, proto, or full_message without adding a new parser for every product.

Correlation is entity-aware rather than FortiGate-specific. SignalScope recognizes common IP fields such as srcip, source_ip, remote_addr, and Windows event IP fields; account fields such as username, user, and TargetUserName; and host fields such as hostname, computer, and winlog_computer_name. Configure the exact entity field per stream in the profile when your Graylog schema differs.

Each profile baseline is stored per stream, entity, selected field, and five-minute bucket. Once enough history exists, SignalScope compares the current rate or numeric value to the same UTC weekday/hour where possible, then falls back to the stream's overall history. Repeated MCP pages are fingerprinted so the same Graylog event is not learned repeatedly. Related anomalies, profile deviations, and multi-stream correlations are grouped into investigation incidents with a compact evidence timeline.

Timeline and related-activity rows include copyable Graylog query details built from normalized source, destination, action, and DNS fields. These are query details rather than hard-coded web links, so they work with MCP and with Graylog deployments behind different URLs or reverse proxies.

Incident lifecycle state is stored locally in state/signalscope-incidents.json. Use the dashboard incident actions to acknowledge, resolve, or reopen an incident and attach a note. The state is keyed to a stable incident fingerprint so it can survive monitor refreshes even when the current detection window changes.

Field deviation review state is stored locally as feedback. Mark a deviation as Expected, False positive, or Confirmed from the Findings page. The decision is scoped to the stream, entity, field or detector pattern, optional value, note, and expiry time. Expected and false-positive feedback does not erase the finding; it keeps the row reviewable while reducing repeat noise for the same scoped pattern and giving Ollama context that the behavior is already known.

Export the current investigation view when you need to share or archive an incident outside the dashboard:

signalscope export-investigation --format markdown --output exports/investigation.md
signalscope export-investigation --incident-id <incident-id> --format json

The report is built from state/fgai-status.json by default and includes summary counters, stream coverage, incident state, analyst notes, evidence, timeline rows, and Graylog query details. The dashboard exposes the same data at /api/export/incidents?format=markdown or format=json.

With a stream profile in place, SignalScope also builds independent burst baselines for authentication failures, DNS queries, and deny/block actions when those events are present. These are evaluated per configured entity, so a Windows account, DNS client, or firewall source is compared to its own history.

SignalScope also detects ordered behavior sequences across any streams that share an entity. The built-in sequence is category-based, not source-specific: dns_query -> network_connection -> auth_failure. Those categories can come from AdGuard, Windows DNS, a proxy, firewall, VPN, endpoint, or any other Graylog stream as long as the fields normalize into the same generic event model.

Stream profiles can also carry field_weights to tune scoring without changing the baseline itself. Weights are multipliers from 0 to 5 and can target a field, a detector, or a field+detector pair:

{
  "url": 1.5,
  "auth_failure_burst": 2,
  "query_domain": {
    "rare_value": 1.8
  }
}

Use replay or replay-graylog --compare-config-file to test score changes before applying them to the live profile.

Replay a historic JSONL or Graylog export without changing the live baseline:

signalscope replay --logs exports/windows-history.jsonl --stream-id <configured-stream-id>

Replay uses a temporary SQLite baseline and evaluates events in timestamp order. It reports detector counts and the findings that would have been generated. Use the configured stream ID so the export is evaluated with that stream's profile.

Replay directly from Graylog MCP without touching the live baseline:

signalscope replay-graylog --range-seconds 86400

By default this uses the enabled streams from the dashboard configuration. Limit the run to one or more streams with repeated --stream-id flags. To test a candidate detector/profile configuration before applying it, compare it against the current runtime config:

signalscope replay-graylog --range-seconds 86400 --compare-config-file exports/candidate-config.json

The comparison reports detector-count, field-finding, and source-anomaly deltas using the same fetched event window.

The current MCP endpoint is http://<graylog-host>:9000/api/mcp. Enable it in Graylog under System -> Configurations -> MCP and use stream IDs internally; the fgAI stream picker resolves titles in the UI.

For live monitoring, graylog_range_seconds controls how far back each MCP poll searches. The default is 300 seconds, so each poll re-checks the last five minutes. graylog_max_events_per_stream caps raw events fetched from each stream during that window. If a stream hits the cap, the dashboard marks the window as truncated because high EPS means SignalScope sampled only part of the Graylog result set. For very high-volume streams, prefer aggregate baselines and targeted drill-down queries over trying to pull every raw event through MCP. Large values such as 100000 can require hundreds of paged MCP searches across enabled streams. If Graylog times out or rejects the query, SignalScope keeps the events already fetched, marks the stream as a partial fetch, and shows the MCP error in Diagnostics instead of failing the whole dashboard update. The monitor also stores the last successful dashboard status in state/signalscope-status-cache.sqlite3. If a later live MCP fetch fails before usable data is available, the dashboard keeps showing the last good findings, graphs, incidents, and correlations with a stale-data warning instead of going blank.

Graylog fetch mode controls how high-volume streams are read:

• raw: fetch raw events up to graylog_max_events_per_stream.
• aggregate: use Graylog MCP aggregate_messages for total event volume, then fetch only graylog_raw_sample_events raw events per stream for findings and drill-down context.
• auto: use aggregate mode automatically when graylog_max_events_per_stream is larger than graylog_raw_sample_events.

For high EPS environments, keep graylog_range_seconds at 300, set graylog_fetch_mode to auto or aggregate, and use a modest raw sample such as 5000. The dashboard then shows aggregate event volume without forcing every raw log line through MCP each poll. In aggregate mode the raw sample is capped at 10000 events per stream to stay within Graylog's default result-window limit; aggregate counts are used for volume above that.

Monitoring Export

The dashboard also exposes Prometheus text metrics at:

http://127.0.0.1:8088/metrics

This endpoint is passive and has no Prometheus or Grafana dependency. It reports low-cardinality event counts, anomaly severities, incident counts, baseline readiness, and Graylog MCP health. Use it later as a Prometheus scrape target or as input for a Checkmk local check. Do not use source IPs, domains, or raw event IDs as metric labels.

Enable cached Ollama analyst notes in the dashboard:

FGAI_LLM=1 OLLAMA_MODEL=llama3.1 ./start.sh restart

The monitor refreshes deterministic detections every FGAI_MONITOR_INTERVAL seconds and refreshes the LLM note every FGAI_LLM_INTERVAL seconds, default 300.

The script activates .venv inside the script process. If you also want your current shell prompt to show the venv, run:

source .venv/bin/activate

For UDP 514, the script starts only the listener command with sudo:

FGAI_SYSLOG_PORT=514 ./start.sh

The syslog receiver rotates the active JSONL input at 25 MB by default. Rotated files are gzip-compressed and 14 archives are retained. Override this when needed:

FGAI_LOG_ROTATE_BYTES=$((100 * 1024 * 1024)) FGAI_LOG_ROTATE_COUNT=30 ./start.sh restart

The continuous monitor also stores a local SQLite behavior baseline at state/fgai-baseline.sqlite3. A source becomes baseline-ready after 12 completed five-minute windows. Historical rate and hitcount-rate deviations then contribute to its anomaly score. Set FGAI_BASELINE_DB to use another location.

SignalScope prunes old baseline buckets during each monitor cycle. The defaults keep 14 days of buckets and dedupe history, prune stale one-off categorical values after 7 days, and cap high-cardinality values per stream/entity/field. Tune these in the dashboard or in state/fgai-config.json:

{
  "baseline_training_days": 7,
  "baseline_retention_days": 14,
  "baseline_value_retention_days": 7,
  "baseline_max_values_per_field": 2000
}

baseline_training_days is the minimum baseline age before profile deviations are promoted into live triage. For production data, set this to the amount of history you trust, commonly 7 to 14 days. The dashboard shows fields as learning until both bucket count and baseline age are sufficient.

If an existing baseline database has already grown large, stop the monitor and run a manual prune plus SQLite compaction:

signalscope baseline-maintenance --baseline-db state/fgai-baseline.sqlite3 --retention-days 14 --value-retention-days 7 --max-values-per-field 2000 --vacuum

VACUUM can take time on a large database and should not be run while the monitor is actively writing.

Analyze local logs:

fgai analyze-logs --logs logs/fg_syslog.jsonl

Open the live UI after ./start.sh:

xdg-open http://127.0.0.1:8088

Score likely traffic anomalies:

fgai detect-anomalies --logs logs/fg_syslog.jsonl --min-score 35
fgai detect-anomalies --logs logs/fg_syslog.jsonl --min-score 35 --llm --llm-timeout 300

Generate response and policy recommendations:

fgai recommend --logs logs/fg_syslog.jsonl --min-score 35

Optional external reputation enrichment is disabled by default. To use VirusTotal for public source/destination IP reputation:

export FGAI_THREAT_INTEL=1
export ABUSEIPDB_API_KEY='...'
fgai recommend --logs logs/fg_syslog.jsonl --min-score 35 --threat-intel

VirusTotal is also supported:

export FGAI_THREAT_INTEL=1
export FGAI_THREAT_INTEL_PROVIDER=virustotal
export VIRUSTOTAL_API_KEY='...'
fgai recommend --logs logs/fg_syslog.jsonl --min-score 35 --threat-intel

Threat intelligence can also be configured in the dashboard settings. Choose auto, abuseipdb, or virustotal, paste the provider API key, and set the daily lookup budget and cache TTLs. API keys are stored only in the local config file and are not returned back to the browser after saving.

Threat intelligence responses are cached locally in state/threat-intel-cache.json. Successful results are reused for seven days by default, failures for one hour, and SignalScope permits at most 100 new provider lookups per UTC day. Cached responses are returned even after that budget is reached. Tune these safeguards in the dashboard or with FGAI_THREAT_INTEL_TTL_SECONDS, FGAI_THREAT_INTEL_ERROR_TTL_SECONDS, and FGAI_THREAT_INTEL_DAILY_LIMIT.

Listen for FortiGate syslog locally:

fgai listen-syslog --port 5514 --output logs/fg_syslog.jsonl

Run the listener quietly in the background:

./start.sh

Stop the background listener:

./start.sh stop

UDP port 514 normally needs root privileges on Linux:

sudo .venv/bin/fgai listen-syslog --port 514 --output logs/fg_syslog.jsonl

Test FortiGate API access:

export FORTIGATE_HOST=192.0.2.10
export FORTIGATE_API_TOKEN='...'
export FORTIGATE_VERIFY_TLS=false
fgai test-connection
fgai fetch-policies --output exports/policies.json

Audit a FortiGate policy export:

fgai audit-policies --config exports/fortigate.conf

Or fetch policies through the FortiGate API and audit that JSON:

fgai fetch-policies --output exports/policies.json
fgai audit-policies --config exports/policies.json --llm --llm-timeout 300

Find block candidates without changing the firewall:

fgai suggest-blocks --logs logs/fg_syslog.jsonl

Execute guarded quarantine actions:

export FORTIGATE_HOST=192.0.2.10
export FORTIGATE_API_TOKEN='...'
fgai suggest-blocks --logs logs/fg_syslog.jsonl --execute --expiry-minutes 60

Optional local LLM summary through Ollama:

ollama pull llama3.3
fgai analyze-logs --logs logs/fg_syslog.jsonl --llm --llm-timeout 300

For slower machines or large models:

OLLAMA_MODEL=llama3.1 OLLAMA_TIMEOUT=300 fgai analyze-logs --logs logs/fg_syslog.jsonl --llm

Optional FortiGate Input

Synthetic Windows Test Input

For testing a Graylog Beats input without a Windows host, generate Windows Security-style JSONL events locally, then use Filebeat to ship them over TCP:

python scripts/generate_windows_events.py --interval 0.5
filebeat -e -c examples/filebeat-windows-synthetic.yml

Update the absolute JSONL path and Graylog host in the Filebeat template first. Route stream_hint: Windows to a dedicated Graylog stream, then enable that stream in SignalScope. The Settings page should recommend a Windows profile once sample events have been fetched; apply it and adjust the entity/categorical fields if your parser uses different names. Filebeat uses its Logstash output to communicate with Graylog's Beats input on TCP 5044. Graylog Beats input documentation

For logs, configure FortiGate syslog to write into a local file such as logs/fg_syslog.jsonl. The parser supports common key/value syslog lines and JSONL.

For policies, export a FortiOS config backup and pass it to audit-policies.

Example FortiGate syslog target, run on the FortiGate CLI and replace the server IP with this machine:

config log syslogd setting
    set status enable
    set server "192.0.2.50"
    set port 5514
    set mode udp
    set format default
end

Environment

• FORTIGATE_HOST: firewall hostname or IP.
• FORTIGATE_API_TOKEN: REST API token.
• FORTIGATE_VERIFY_TLS: true or false, defaults to true.
• FGAI_ALLOWLIST: comma-separated IPs/CIDRs never to block.
• OLLAMA_HOST: defaults to http://127.0.0.1:11434.
• OLLAMA_MODEL: defaults to llama3.1.
• OLLAMA_TIMEOUT: Ollama request timeout in seconds, defaults to 180.
• FGAI_LLM: set to 1 to enable dashboard Ollama analyst notes.
• FGAI_LLM_INTERVAL: seconds between dashboard LLM notes, defaults to 300.
• FGAI_THREAT_INTEL: set to 1 to enable external threat intelligence lookups.
• ABUSEIPDB_API_KEY: AbuseIPDB API key for public IP reputation enrichment.
• ABUSEIPDB_MAX_AGE_DAYS: report age window for AbuseIPDB, defaults to 90.
• FGAI_THREAT_INTEL_PROVIDER: auto, abuseipdb, or virustotal.
• VIRUSTOTAL_API_KEY: VirusTotal API key for public IP reputation enrichment.

Safety Model

The agent separates detection from enforcement:

• UTM events are scored from FortiGate logs (ips, virus, anomaly, ddos, webfilter, app-ctrl, waf, dns).
• Source IPs must be globally routable and outside the allowlist.
• Blocking requires --execute.
• The FortiGate API call is limited to the quarantine/banned user monitor endpoint.
